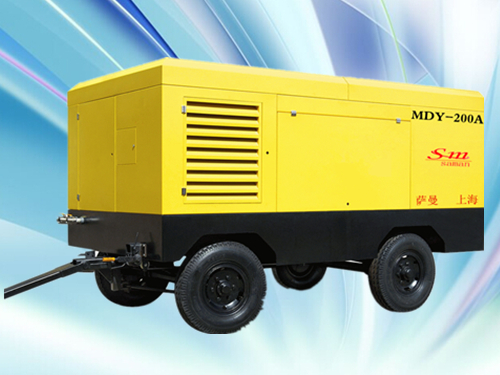

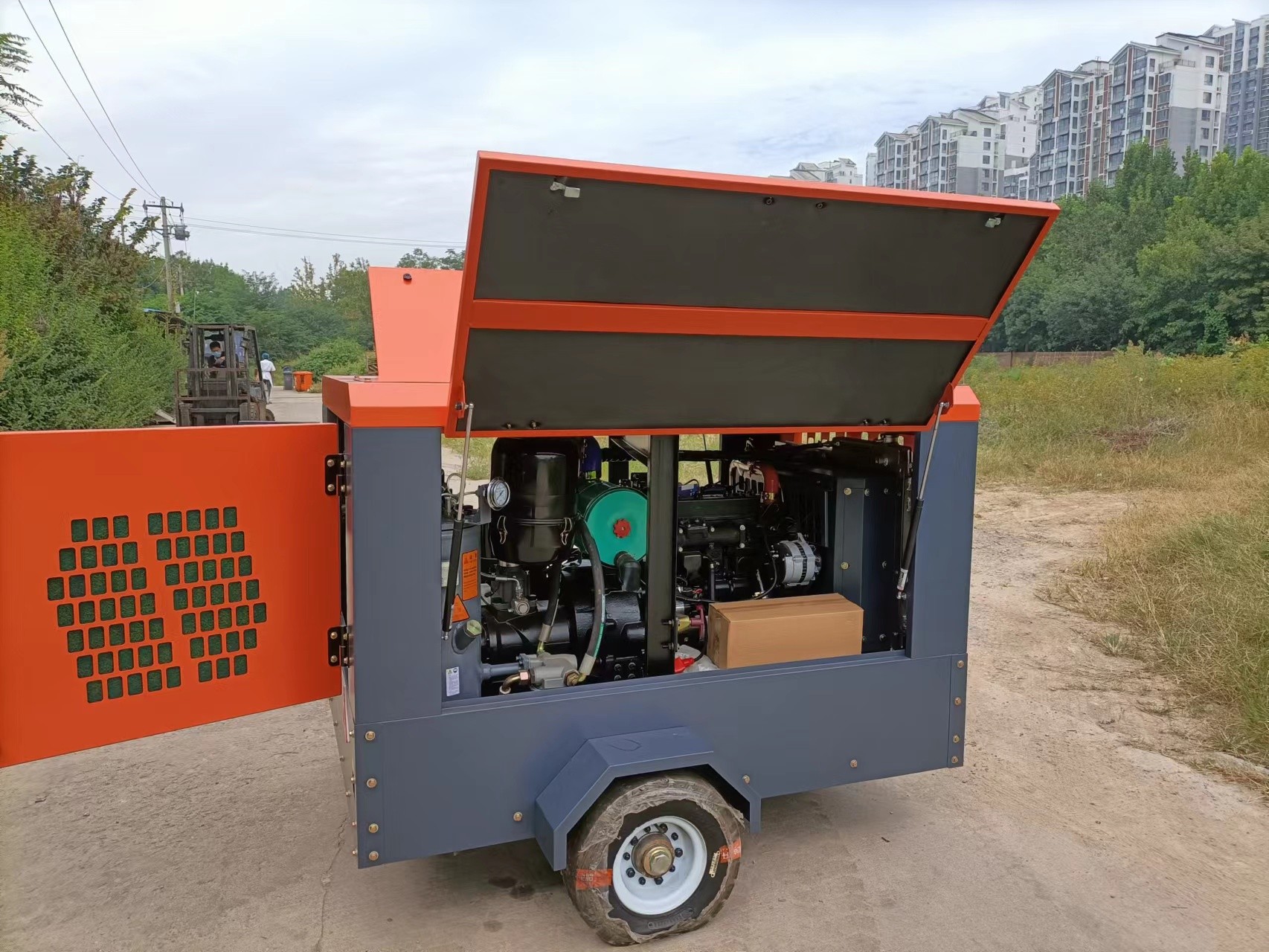

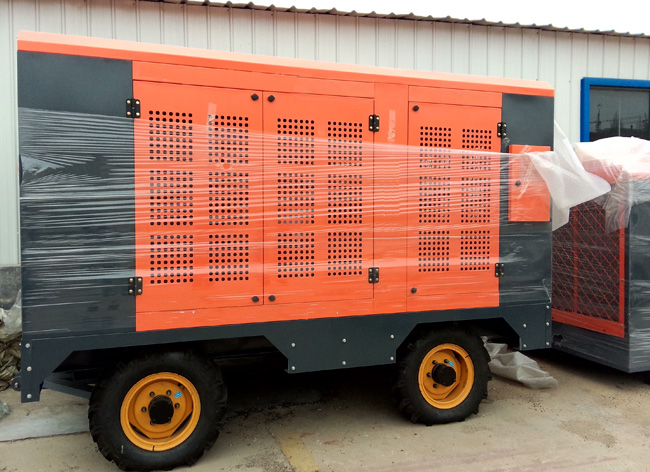

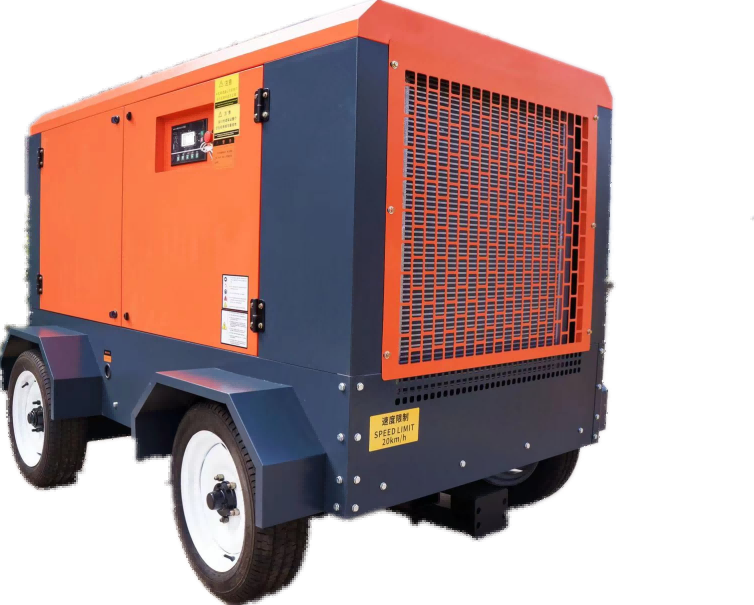

Electric mobile screw air compressor

Electric mobile screw air compressor

Model: MDY-25A~MDY-250A

Electric mobile screw air compressors are widely used in industries such as urban construction, transportation, shipbuilding, energy, water conservancy, military, and mining. Flexible operation, even in narrow construction sites, can enter and exit freely. Equipped with an intelligent control system, it is easy to operate and maintain. Efficient and durable three proof electric motor; Excellent performance screw host; Couplings that transmit high torque; Automatic protection system; Luxury dashboard with clear operational status at a glance; Independently designed cooling system; A safe and reliable electrical control system; Automatic intake valve and unloading starting device; Easy to maintain design with reliable performance; Accurate and reliable temperature control valve; The whole machine is designed with sound insulation, resulting in low noise.


Hotline:0984761180 // 0834288078

product details

Characteristics of electric mobile screw air compressor:

1. Adopt high-efficiency branded motors to achieve greater efficiency;

2. Flexibility in operation, allowing for easy entry and exit even in narrow construction sites. The unique MAMAN walking system facilitates transportation and reduces operating costs;


3. The whole machine is intelligently controlled, carefully matched with well-known brand motor components and MAMAN products to ensure the safe and stable operation of the unit, without the need for dedicated personnel to guard it.


Features of mobile screw air compressor:


1. Match diesel power according to different power levels to achieve a better performance combination;

2. Efficiency diversification;

3. Low vibration technology, unique noise control system makes noise smaller and lower;

4. Easy to operate, clear operation status, and convenient maintenance



Technical Parameter


型号
Model

排气量/排气压力
Capacity/Pressure
(m3/min)/Mpa

功率
Power

(KW)

重量
Weight
(KG)

外形尺寸
Dimension
L*W*H(mm)

出口管径
Outlet Connection

描述
Remark(Wheels)

MDY-25A

3.22/0.7

3.01/0.8

2.52/1.0

2.3/1.2

18.5

1200

3200*1650*1650

G1 1/2

2  Wheels

MDY-30A

3.60/0.7

3.56/0.8

3.07/1.0

2.84/1.2

22

1300

3200*1650*1650

G1 1/2

2  Wheels

MDY-50A

6.58/0.7

6.26/0.8

5.80/1.0

5.06/1.2

37

1400

3400*1700*1650

G1 1/2

2  Wheels

MDY-60A

7.36/0.7

7.01/0.8

6.47/1.0

5.80/1.2

45

1500

3400*1700*1650

G1 1/2

2  Wheels

MDY-75A

10.8/0.7

10.1/0.8

8.50/1.0

7.69/1.2

55

1900

3940*1775*1800

G2

2  Wheels

MDY-100A

13.5/0.7

12.7/0.8

11.3/1.0

10.1/1.2

75

2400

3940*1775*1300

G2

2  Wheels

MDY-120A

16.2/0.7

15.2/0.8

14.3/1.0

12.9/1.2

90

3240

3520*1650*2120

G2

2  Wheels

MDY-150A

21.6/0.7

20.1/0.8

17.5/1.0

16.0/1.2

110

3500

3500*1640*2450

G2

2  Wheels

MDY-175A

25.2/0.7

24.0/0.8

21.0/1.0

18.3/1.2

132

3650

3500*1640*2450

G2

2  Wheels

MDY-200A

28.7/0.7

27.6/0.8

25.3/1.0

22.4/1.2

160

3800

3550*1740*2450

G2

2  Wheels

MDY-250A

32.5/0.7

30.8/0.8

28.2/1.0

25.1/1.2

185

3950

3600*1740*2450

G2

2  Wheels


after-sale service


Since entering the Chinese market in 2011, Saman has used tens of thousands of screw compressors in China, all of which have received comprehensive technical support and services from Saman Company.

Saman has a warehouse and assembly factory in Shanghai, which can provide spot spare parts.

Users can receive free training (on-site), which includes:

1. Compressor operation training

2. Compressor system training

3. Maintenance training

4. Warranty

5. Spare parts ordering

·Our company responds to user requests 24 hours a day. During use, after receiving a distress message, we will send someone to the equipment site within 4 hours;

·From the date of equipment operation, the supplier's after-sales service personnel shall proactively conduct on-site inspections 4 times a year;

·Lifetime maintenance, timely inquire about the operation status of the equipment and any existing usage issues, try to meet the requirements of the demand as much as possible, and satisfy the users;

·Provide multiple service contracts (preventive maintenance, flexible maintenance, etc.)

·Saman Company guarantees that the goods are brand new, made of high-quality materials, processed with precision, and fully comply with all specifications and performance requirements stated in the contract. Under the conditions of correct installation, operation, and maintenance, the equipment warranty period is 12 months after the normal operation of the machine (with a five-year warranty for the main rotor).

·If there are any quality problems with the product during the warranty period, Saman Company will promptly repair or replace the relevant components free of charge. During the warranty period, the company provides free spare parts that need to be replaced. In case of any malfunction of the machine, our company shall provide free services (including providing accessories and labor) until the customer is satisfied

·Startup debugging

·Our company will dispatch qualified and experienced technicians to the site for installation inspection, equipment testing, and startup debugging.

Startup debugging content:

1. Inspect installation and work site

2. Inspect equipment such as compressors/dryers

3. Start up debugging/inspection and record the operation status

4. Dispatch training on operation and maintenance knowledge for operators
