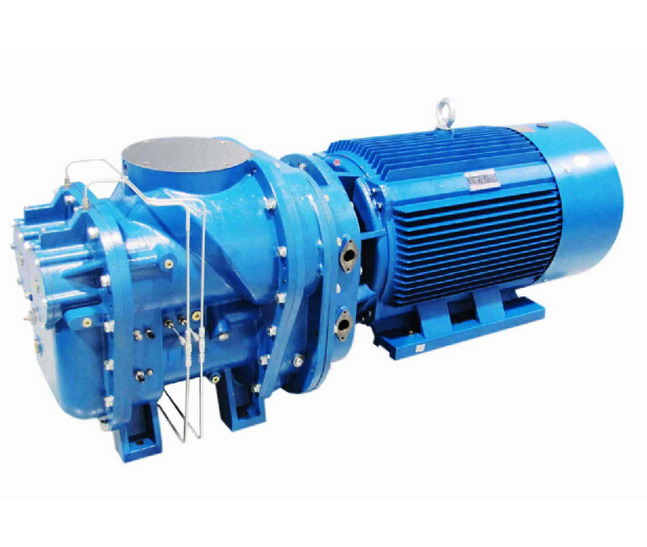

Double stage compression screw air compressor

Double stage compression screw air compressor

Model: MUT90-7~MUT315-13

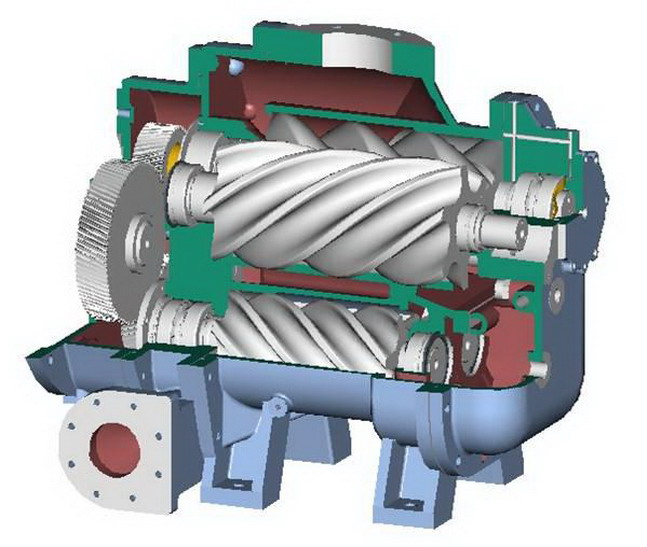

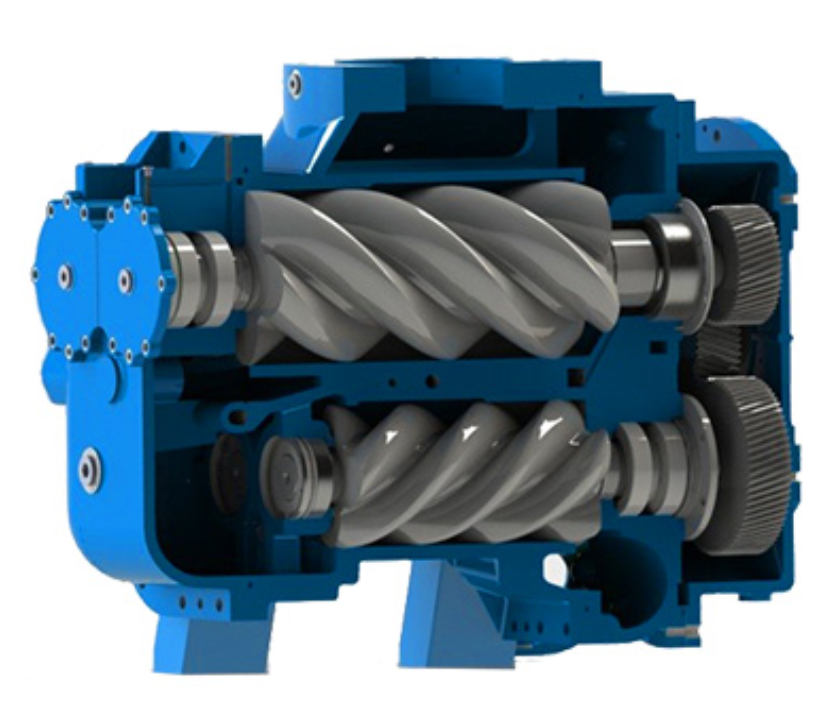

The host adopts a large rotor, low-speed design, and contains two independent compression units; The rotor adopts a profile and undergoes more than 20 precision machining processes to ensure the accuracy, reliability, and effectiveness of the rotor profile. The compression ratio of each stage of compression is precisely designed to reduce the load on bearings and gears, and extend the service life of the main engine. Each stage has a smaller compression ratio, smaller leakage, and higher volumetric efficiency. Under the same power, two machine heads bear the load, resulting in less bearing force on the shaft and longer lifespan.

Hotline:021-59581161 // 15921856487

product details

After the first stage of compression, the air is cooled by enhanced fuel injection to reduce the second stage suction temperature. The air is compressed under equal pressure to reduce compression power.

The two-stage compression adopts an equal pressure ratio to set the inter stage pressure, so each stage compression ratio is much lower than the single-stage compression ratio. The reflux leakage between rotors is greatly reduced, and the volumetric efficiency and adiabatic efficiency are greatly improved, correspondingly increasing the compressed gas production.

Under the same power, two-stage compression produces more gas than single-stage compression.



Technical Parameter




after-sale service


Since entering the Chinese market in 2011, Saman has used tens of thousands of screw compressors in China, all of which have received comprehensive technical support and services from Saman Company.

Saman has a warehouse and assembly factory in Shanghai, which can provide spot spare parts.

Users can receive free training (on-site), which includes:

1. Compressor operation training

2. Compressor system training

3. Maintenance training

4. Warranty

5. Spare parts ordering

·Our company responds to user requests 24 hours a day. During use, after receiving a distress message, we will send someone to the equipment site within 4 hours;

·From the date of equipment operation, the supplier's after-sales service personnel shall proactively conduct on-site inspections 4 times a year;

·Lifetime maintenance, timely inquire about the operation status of the equipment and any existing usage issues, try to meet the requirements of the demand as much as possible, and satisfy the users;

·Provide multiple service contracts (preventive maintenance, flexible maintenance, etc.)

·Saman Company guarantees that the goods are brand new, made of high-quality materials, processed with precision, and fully comply with all specifications and performance requirements stated in the contract. Under the conditions of correct installation, operation, and maintenance, the equipment warranty period is 12 months after the normal operation of the machine (with a five-year warranty for the main rotor).

·If there are any quality problems with the product during the warranty period, Saman Company will promptly repair or replace the relevant components free of charge. During the warranty period, the company provides free spare parts that need to be replaced. In case of any malfunction of the machine, our company shall provide free services (including providing accessories and labor) until the customer is satisfied

·Startup debugging

·Our company will dispatch qualified and experienced technicians to the site for installation inspection, equipment testing, and startup debugging.

Startup debugging content:

1. Inspect installation and work site

2. Inspect equipment such as compressors/dryers

3. Start up debugging/inspection and record the operation status

4. Dispatch training on operation and maintenance knowledge for operators
